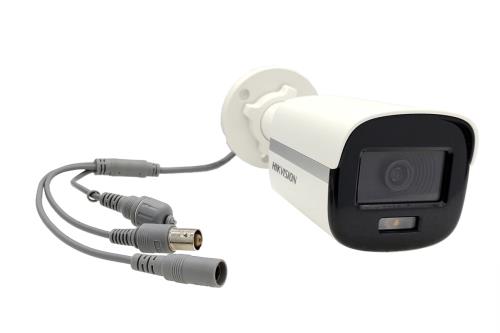

GUV-LED-HIKVISION DS-2CE10DF0T-PF 2MP 2.8 MM COLORVU BULLET HD-TVI KAM

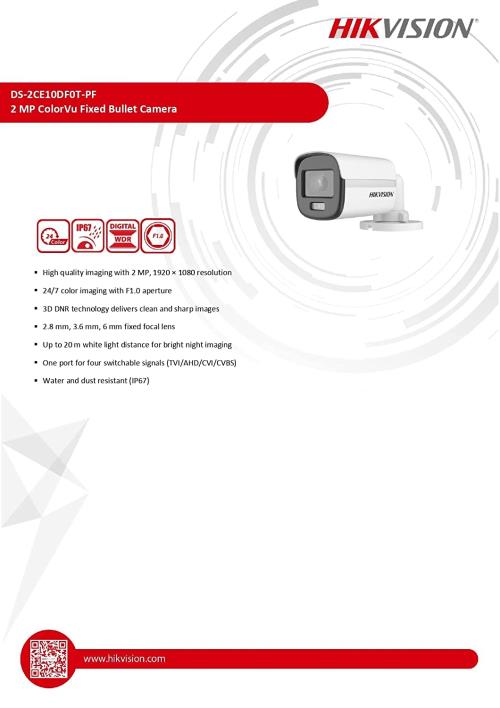

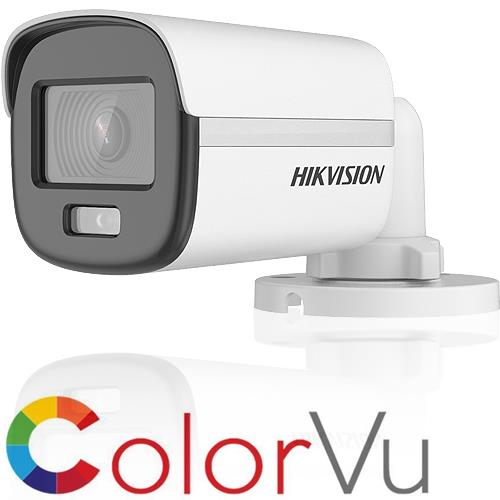

2 MP ColorVu Fixed Mini Bullet Camera

• High quality imaging with 2 MP, 1920 × 1080 resolution
• 24/7 color imaging with F1.0 aperture
• 3D DNR technology delivers clean and sharp images
• 2.8 mm, 3.6 mm, 6 mm fixed focal lens
• Up to 20 m white light distance for bright night imaging
• One port for four switchable signals (TVI/AHD/CVI/CVBS)
• Water and dust resistant (IP67)

Available models:

DS-2CE10DF0T-PF(2.8mm)

• Kamera
• Image Sensor2 MP CMOS
• Max. Resolution1920 (H) × 1080 (V)
• Min. Illumination0.001 Lux @ (F1.0, AGC ON), 0 Lux with white light
• Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
• Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360°
• Signal SystemPAL/NTSC

• Lens
• Lens Type2.8 mm,  lens
• Focal Length & FOV

  2.8 mm, horizontal FOV: 98°, vertical FOV: 51°, diagonal FOV: 115°

• Illuminator
• Supplement Light TypeWhite Light
• Supplement Light RangeWhite Light Distance: Up to 20 m
• Smart Supplement LightYes
• Image
• Image Parameters SwitchSTD/HIGH-SAT/HIGHLIGHT
• Image SettingsBrightness;Mirror;Sharpness;Anti-Banding;AGC
• Frame Rate

  TVI: 1080p@25fps/30fps

  CVI: 1080p@25fps/30fps

  AHD: 1080p@25fps/30fps

  CVBS: PAL/NTSC

• Day/Night ModeColor
• Wide Dynamic Range (WDR)Digital WDR
• Image EnhancementBLC;HLC;Global
• Noise Reduction3D DNR/2D DNR
• White BalanceAuto/Manual

• Interface
• Video OutputSwitchable TVI/AHD/CVI/CVBS
• AlarmSolid Light Alarm (White Light)

• General
• Power

  12 VDC ± 25%

  *You are recommended to use one power adapter to supply the power for one camera.

  Max. 2.4 W

• MaterialPlastic
• Dimension161.1 mm × 70 mm × 70 mm (6.34" × 2.76" × 2.76")
• WeightApprox. 229 g (0.50 lb)
• Operating Condition-40°C to 60°C (-40°F to140°F), Humidity: 90% or less (non-condensing)
• CommunicationHIKVISION-C
• LanguageEnglish

• Approval
• ProtectionIP67
