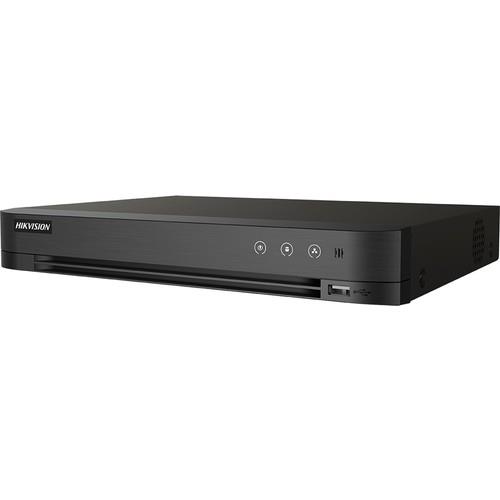

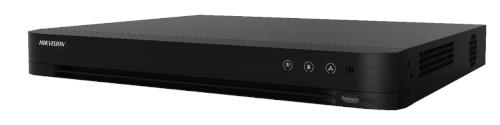

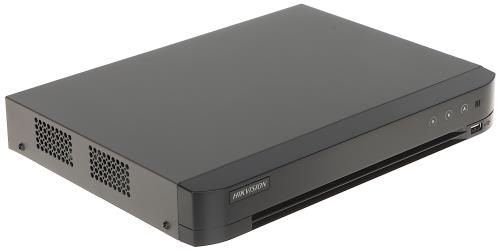

HIKVISION IDS-7208HQHI-M1-S 8 KANAL 1080P 4MP H.265 KAYIT CİHAZI

HIKVISION IDS-7208HQHI-M1-S 8 KANAL 1080P 4MP H.265 KAYIT CİHAZI

8-ch 1080p 1U H.265 AcuSense DVR
8 channels and 1 HDD 1U AcuSense DVR
False alarm reduction through human and vehicle target classification based on deep learning
Efficient H.265 pro+ compression technology
Encoding ability up to 1080p @ 15 fps
5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
Up to 12 network cameras can be connected.

Available models:

iDS-7208HQHI-M1/S(C)
iDS-7208HQHI-M1/S(C)

Specification
Recording
Video And Audio
Network
Auxiliary Interface
General
Recording
Video Compression
H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution
Main stream:

When 1080p lite mode not enabled:

For 4 MP stream access:

4 MP lite@15 fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)

For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15 fps

For 1080p stream access:

1080p/720p@15 fps; VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)

For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)

When 1080p Lite mode enabled:

4 MP lite/3 MP@15 fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)

Sub-stream:

WD1/4CIF@12 fps; CIF@25 fps (P)/30 fps (N)

Video Bitrate
32 Kbps to 6 Mbps
Dual-Stream
Support
Stream Type
Video, Video & Audio
Audio Compression
G.711u
Audio Bitrate
64 Kbps
Video And Audio
IP Video Input
2-ch (up to 10-ch)

Up to 6 MP resolution

Enhanced IP mode on:

4-ch (up to 12-ch), each up to 4 Mbps

Support H.265+/H.265/H.264+/H.264 IP cameras

Analog Video Input
8-ch;BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDMI Output
1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz,

1024 × 768/60Hz, HDMI/VGA simultaneous output

CVBS Input
PAL/NTSC
CVBS Output
1-ch, BNC (1.0 Vp-p, 75 Ω),

resolution: PAL: 704 × 576, NTSC: 704 × 480
