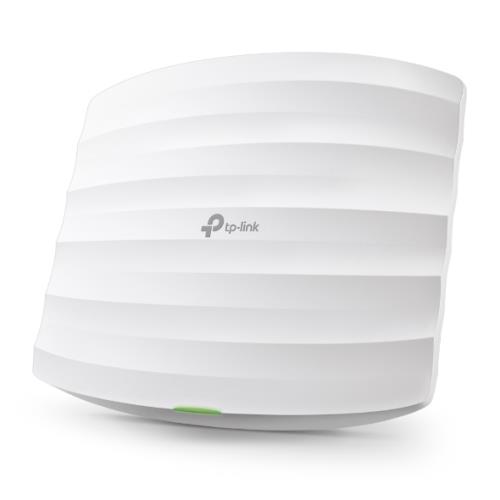

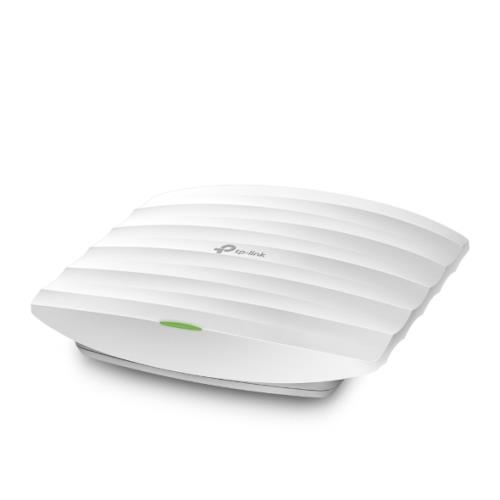

TP-LINK OMEDA EAP223 AC1350 Dual Band Tavan Tipi Access Point 802.3af, 48V Passive PoE, no PoE adapter
%2
Adet
| Stok Kodu : | T2-EAP223 |
| Stok Durumu : | 3 Stokta var! |
| Marka : | TP-LINK |
| Derece : | 0 |
| Yorumlar : | 0 Adet |
| Fiyat : | 48,40 USD + KDV |
| DONANIM ÖZELLİKLERİ | |
|---|---|
| Arabirim | Gigabit Ethernet (RJ-45) Port×1 (Support IEEE802.3af PoE and Passive PoE) |
| Fiziksel Güvenlik Kilidi | Yes |
| Buton | Reset |
| Güç Kaynağı | • 802.3af PoE • 24V Passive PoE (+4,5pins; -7,8pins. PoE Adapter IS NOT Included) |
| Güç Tüketimi | 12.6 W |
| Boyutlar ( W X D X H ) | 8.1 × 7.1 × 1.5 in (205.5 × 181.5 × 37.1 mm) |
| Anten Tipi | 3 Internal Omni • 2.4 GHz: 4 dBi • 5 GHz: 5 dBi |
| Montaj | Ceiling /Wall Mounting (Kits included) |
| KABLOSUZ ÖZELLİKLERİ | |
|---|---|
| Coverage | 115?(1250 ft²)§ |
| Concurrent Clients | 220+** |
| Kablosuz Standartlar | IEEE 802.11ac/n/g/b/a |
| Frekans | 2.4 GHz and 5 GHz |
| Bağlantı Hızı | • 5 GHz:Up to 867 Mbps • 2.4 GHz:Up to 450 Mbps |
| Kablosuz Fonksiyonlar | • Multiple SSIDs (Up to 16 SSIDs, 8 for each band) • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • QoS(WMM) • Seamless Roaming* • Omada Mesh* • Band Steering • Load Balance • MU-MIMO • Airtime Fairness • Beamforming • Rate Limit • Reboot Schedule • Wireless Schedule • Wireless Statistics based on SSID/AP/Client |
| Kablosuz Güvenlik | • Captive Portal Authentication* • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • SSID to VLAN Mapping • Rogue AP Detection • 802.1X Support |
| İletim Gücü | • CE: ≤20 dBm(2.4 GHz, EIRP) ≤23 dBm(5 GHz, EIRP) • FCC: ≤24 dBm(2.4 GHz) ≤22 dBm(5 GHz) |
| YÖNETİM | |
|---|---|
| Omada App | Yes |
| Centralized Management | • Omada Hardware Controller OC300 • Omada Hardware Controller OC200 • Omada Software Controller • Omada Cloud-Based Controller |
| Cloud Access | Yes, through • OC300 • OC200 • Omada Software Controller • Omada Cloud-Based Controller |
| Eposta Uyarı | Yes |
| LED Açık/Kapalı Kontrolü | Yes |
| MAC Erişim Kontrolü Yönetimi | Yes |
| SNMP | v1,v2c |
| Yerel/Uzak Sistem Günlüğü Kaydı | Local/Remote Syslog |
| SSH | Yes |
| Web-tabanlı Yönetim | HTTP/HTTPS |
| L3 Yönetim | Yes |
| Multi-site Yönetim | Yes |
| Management VLAN | Yes |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller |
| DİĞERLERİ | |
|---|---|
| Sertifika | CE, FCC, RoHS |
| Paket İçeriği | • AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point EAP223 • Mounting Kits • Installation Guide |
| Sistem Gereksinimleri | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux |
| Ortam | • Operating Temperature: 0–40 ? (32–104 ?) • Storage Temperature: -40–70 ? (-40–158 ?) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
|
|
|
|||||||||||||||||||||||||||||||||||||||
